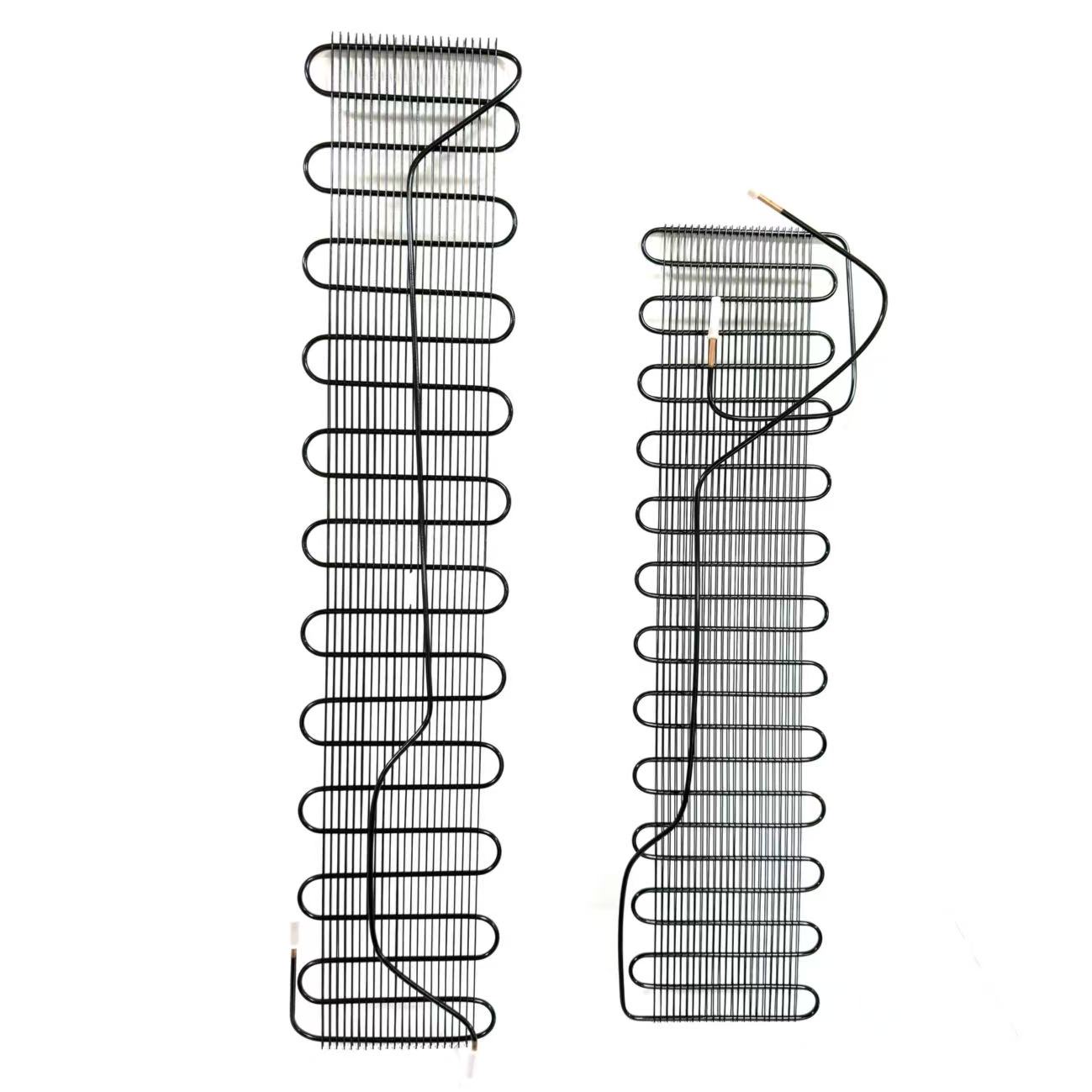

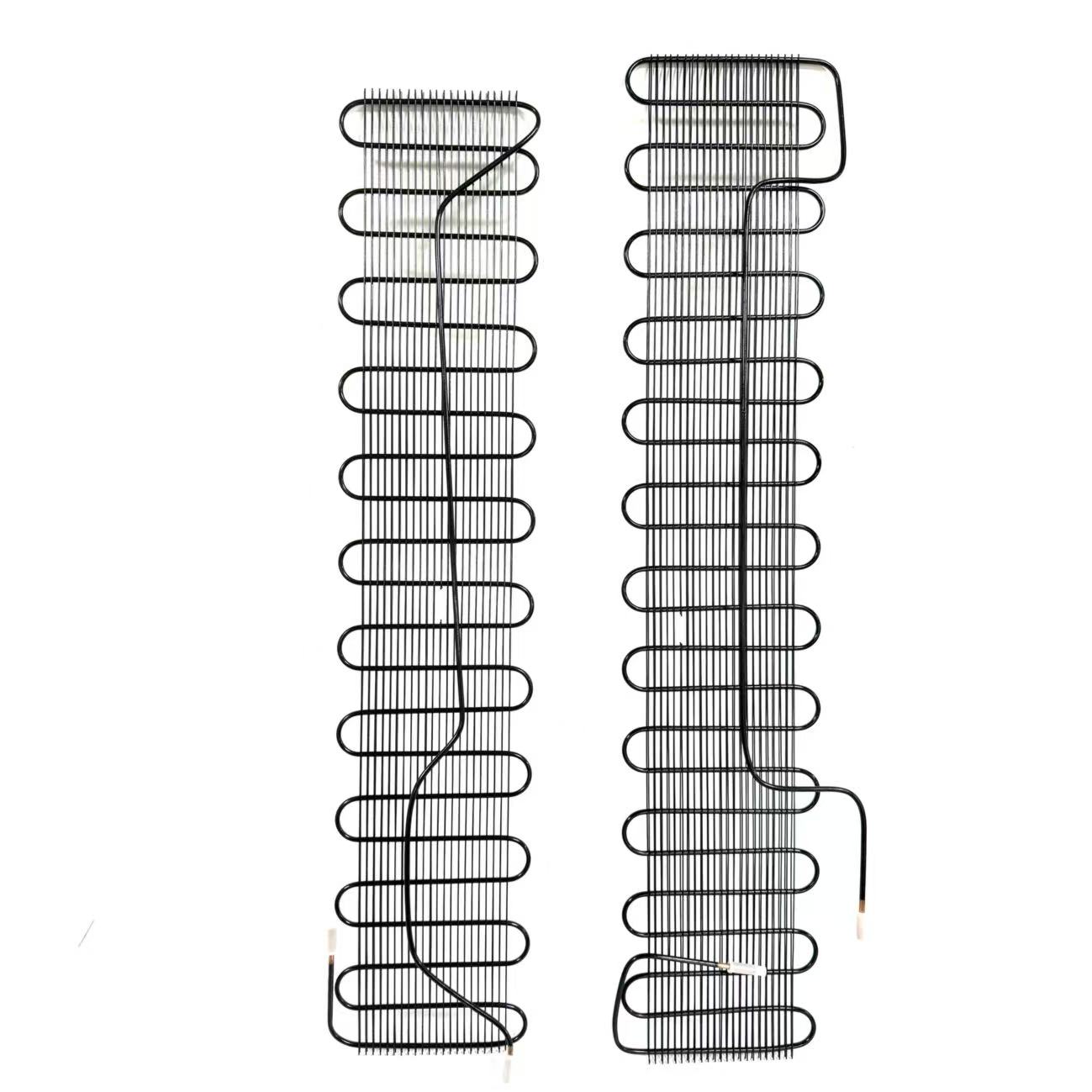

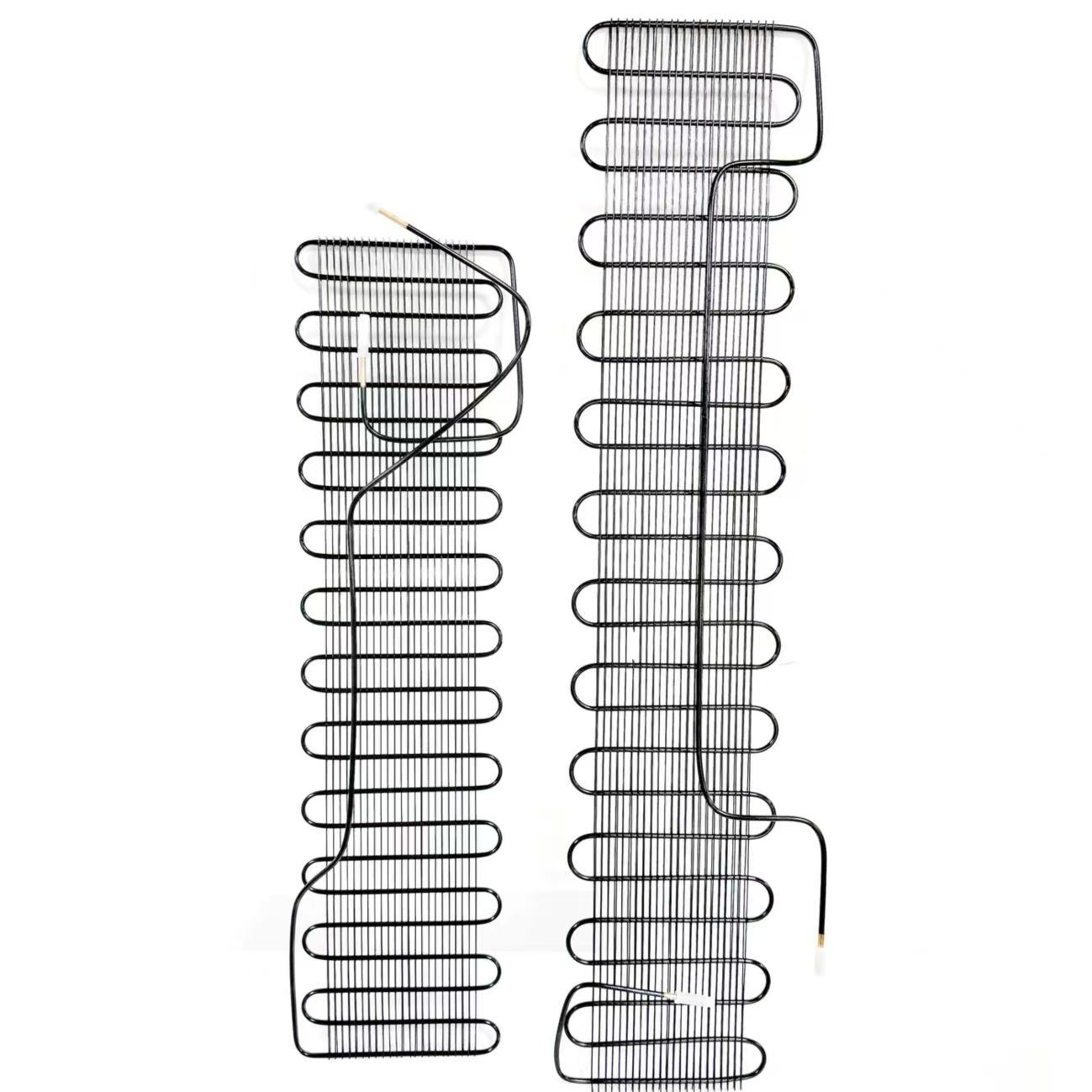

This condenser is a core thermal component designed for internal integration within the cabinetry of commercial and residential water dispensers. It employs the same proven, robust wire-on-tube construction as our other industrial condensers, but optimized in a flatter, more compact layout to fit seamlessly alongside water tanks and compressor units. This design ensures reliable cooling performance for consistent chilled water output while maximizing the efficient use of interior space.

Key Features & Advantages

· Compact, Space-Efficient Flat Design: Engineered with a low-profile, planar layout that allows for flexible mounting on interior cabinet panels (side or rear), optimizing valuable space for larger water tanks or other components.

· Robust Wire-on-Tube Construction: Constructed from durable Bundy steel tube, spot-welded with a dense grid of high-tensile steel wires on both sides. This creates an extremely sturdy, vibration-resistant structure with a large effective surface area for efficient heat transfer.

· Superior Corrosion Protection: Treated with a uniform black cathode electrophoretic coating, providing exceptional defense against rust and corrosion caused by continuous condensation and humidity inside the dispenser, ensuring long-term reliability.

· Efficient & Quiet Operation: The open wire-grid design promotes excellent natural or fan-assisted airflow. Its solid construction minimizes vibration, contributing to quieter overall dispenser operation—a key consideration for offices and homes.

· Simplified Integration & Service: As a standard internal component, it simplifies appliance assembly. Its accessible placement also facilitates inspection if needed.

· Full Customization: We offer complete OEM/ODM services. The condenser can be fully customized in overall dimensions (length, width, contour), tube circuit layout, wire grid density, and port locations to meet your dispenser's exact spatial, thermal, and performance requirements.

Technical Specifications & Customization Options

Parameter Specification / Description

Product Type Standard Flat Wire-on-Tube Condenser

Primary Application Internal installation in Hot/Cold or Cold-Only Water Dispensers

Typical Mounting Internal, horizontal or vertical placement on cabinet panel

Core Tube Material Bundy Steel Tube (Copper-coated steel)

Heat Exchange Structure Bundy tube welded with a steel wire grid on both sides

Surface Treatment Black Cathode Electrophoretic Painting (Standard)

Key Benefits Compact, robust, corrosion-resistant, efficient heat dissipation.

Customization Fully customizable. Dimensions, tube layout, wire grid, and capacity can be engineered to order.

Why Choose Our Water Dispenser Condenser?

We apply our extensive expertise in heavy-duty wire-on-tube manufacturing to the specific needs of water dispensers. This ensures you receive a condenser that is not just a generic part, but a reliable, durable, and perfectly integrated thermal solution designed for the long-term performance of your appliance. We partner with you to deliver a component that fits flawlessly and performs reliably.
