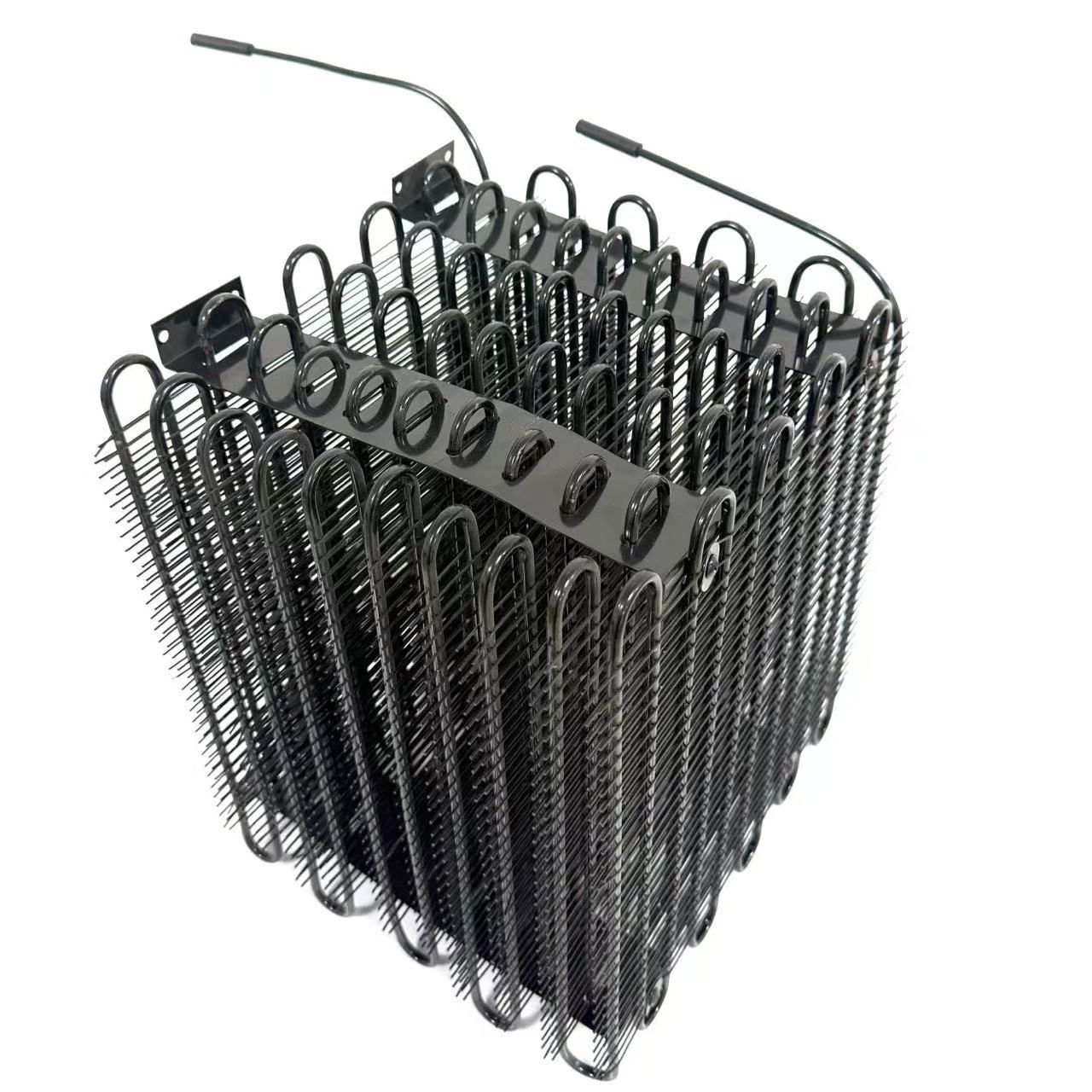

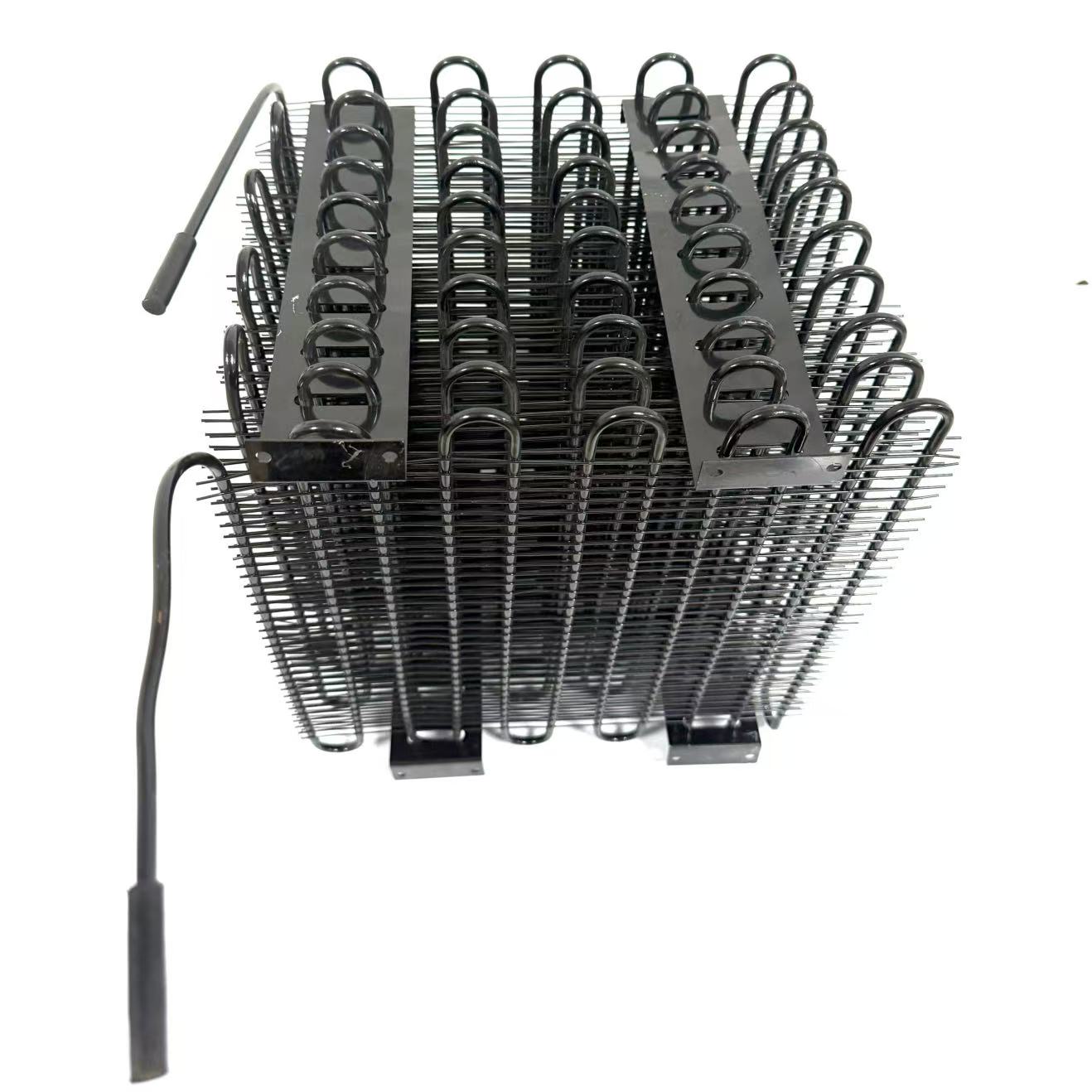

This heavy-duty condenser is purpose-built to meet the significant heat rejection demands of large-scale refrigeration equipment. Its multi-pass, serpentine coil design maximizes surface area and airflow efficiency in a compact footprint. Engineered for durability and performance in continuous-operation environments, it serves as a critical component for system stability and energy efficiency in industrial cooling.

Key Features & Advantages

· High-Capacity Heat Dissipation: The multi-layer serpentine tube layout creates an extensive heat transfer surface, optimized for rapid and efficient condensation of refrigerant in high-power systems.

· Industrial-Strength Construction: Built with heavy-gauge Bundy Tube (available in 4.76mm to 6mm diameters) and reinforced by a dense grid of customizable steel wires spot-welded on both sides. This design provides exceptional mechanical strength, vibration resistance, and long-term leak-proof reliability.

· Superior Corrosion Protection: Treated with a uniform black cathode electrophoresis coating, offering outstanding defense against rust, moisture, and chemical exposure, ensuring longevity even in harsh environments like commercial kitchens or coastal areas.

· Optimized Air-Cooled Efficiency: Designed for effective forced-air cooling with axial fans, ensuring stable system pressure and temperature under high thermal loads.

· Full Customization & Engineering Support: We offer complete OEM/ODM services. Every aspect can be tailored, including tube diameter, circuit layout, overall dimensions, wire gauge and spacing, and port configurations, to integrate seamlessly with your specific large-scale refrigeration unit.

Technical Specifications & Customization Options

Parameter Specification / Description

Product Type Industrial Multi-Layer Air-Cooled Condenser

Primary Application Large Commercial Freezers, Walk-in Coolers, Heavy-Duty Display Cabinets, Industrial Refrigeration Racks

Core Tube Material High-Strength Bundy Steel Tube

Available Tube Diameters 4.76 mm, 5 mm, 6 mm (Custom diameters available)

Heat Exchange Structure Multi-layer serpentine coils with steel wire reinforcement (both sides)

Wire Grid Customizable steel wire diameter (e.g., 1.6mm, 2.0mm) and spacing.

Surface Treatment Black Cathode Electrophoresis Painting (Standard)

Heat Transfer Mode Air-Cooled (Forced Convection)

Key Benefits High heat rejection capacity, extreme durability, vibration resistance, fully customizable.

Design Flexibility Engineer-to-order. We adapt the condenser's size, circuit, capacity, and mounting to match your system’s exact BTU/hr rating and spatial constraints.

Why Choose Our Industrial Condenser?

As a manufacturer with deep expertise in both component and complete unit production, we understand the critical role of a reliable condenser. Our industrial series is built not as a generic part, but as a core system component. We combine proven robust construction with engineering flexibility to provide a solution that delivers uncompromising performance, durability, and a perfect fit for your most demanding refrigeration projects.

Next Steps for a Custom Solution:

To provide you with an accurate specification and quotation, please share details such as:

1. System Refrigeration Capacity (in kW or BTU/hr)

2. Refrigerant Type (e.g., R134a, R404A, R290)

3. Available Installation Space (L x W x H constraints)

4. Fan Airflow & Static Pressure Requirements (if known)
